589.00

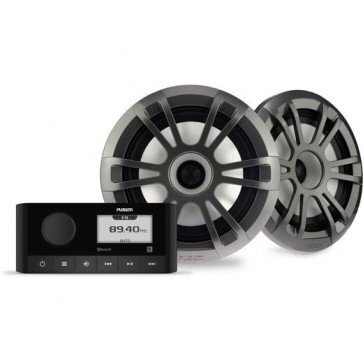

Fusion FUSION RA60 Compact Marine Stereo Kit With EL Sports Speakers

Product Code: FUS-010-02405-61

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit put the perfect soundtrack at your fingertips.

$589.00 In Stock Out of Stock

All prices include GST

Find your closest store to pick-up or deliver your order from
The estimated delivery is 7-9 business days

Shipping Calculator

Share:

Description Specifications Downloads

Amplify the moment with the Fusion MS-RA60 marine stereo and EL Series speaker kit.

Put the perfect soundtrack at your fingertips with everything you need to create an exceptional music experience in your boat at an outstanding value.

The stereos feature modern aesthetics, Multi-Zone™ technology in two zones, and a built-in Class-D amplifier for higher efficiency and greater output.

Features

  • Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.

  • Built-in Class D amplifier brings aboard higher efficiency and greater output.

  • Multi-Zone™ Technology makes you the captain of two separate audio zones.

  • Conveniently update software via Bluetooth® technology from the Fusion-Link™ app on your compatible smart device.

  • Grow your audio system with compatible Fusion speakers, subwoofers, and amplifiers.

Stereo Specifications

  • Physical dimensions (HxWxD) MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)

  • Weight MS-RA60: 11.1 oz (316 g)

  • Water rating IPX6 and IPX7 (front panel only, when properly installed)

  • Power input: 10.8-16 VDC

  • Operating temperature range: 0° to 50° C

  • Current (max.) 15 A

  • Bluetooth® wireless range: Up to 30 ft (10 metres)

  • ANT wireless range: Up to 10 ft (3 metres)

  • Wireless frequencies/protocols: Bluetooth 2.4 GHz @ +12 dBm nominal

  • Compass-safe distance: 5.9″ (150 mm)

  • Display: MS-RA60: 2.3″ perimeter bonded monochrome dot-matrix LCD

  • Built-in amplifier: Class-D (minimum 4 Ohm impedance)

  • Peak power: MS-RA60: 180 W

  • Rated power output (4 Ohm) MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD

  • Fusion-Link™ control MS-RA60: Yes (with smartphone and Garmin watch)

  • Multi-Zone™ technology 2 zones

  • Bluetooth wireless technology: Yes

  • ANT wireless technology: Yes

  • DAB+ ready MS-RA60: Yes (DAB tuner built-in)

  • Multi-language interface: MS-RA60: Dutch, English, French, German, Italian, Spanish

  • Software updates: MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app

  • Warranty: 1 year

  • Sources: MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)

  • Auxiliary input: One RCA input (AUX)

  • AM/FM radio: One Motorola antenna connector port

  • Speaker: MS-RA60: 4 x speaker connections (2 zone amplified)

  • RCA Pre-out (left, right and subwoofer) MS-RA60: 1 zone (requires external amplification)

  • Line out MS-RA60: Zone 1 (L + R, requires external amplification)

  • Subwoofer out MS-RA60: Zone 1 (requires external amplification)

Speaker Specifications

  • Physical dimensions (HxWxD) EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm)

  • Water rating IP65

  • Configuration EL Speaker: Full range

  • Speaker size 6.5″

  • Peak power (Watts) EL Speaker: 80 W

  • RMS power (Watts) EL Speaker: 20 W

  • Sensitivity (1 watt/1 metre) EL Speaker: 88 dB

  • Frequency response EL Speaker: 45 Hz-16 kHz

  • Nominal impedance 4 ohm

  • Recommended amplifier power (RMS) EL Speaker: 20-40 W/Ch

  • Operating temperature range 32° to 122° F (0° to 50° C)

  • Voice coil diameter EL Speaker: 0.79″

  • Cone material Polypropylene cone with cloth surround

  • Tweeter type XS Speaker: Aluminium dome

  • Compass-safe distance EL Speaker: 100″ (254 cm)

  • Warranty EL Speaker: 1 year

  • Mounting diameter clearance EL Speaker: 5.12″ (130 mm)

  • Mounting depth clearance EL Speaker: 1.69″ (43 mm)

  • Weight: 1.0000
  • Height: 0
  • Width: 0

No downloads available.
