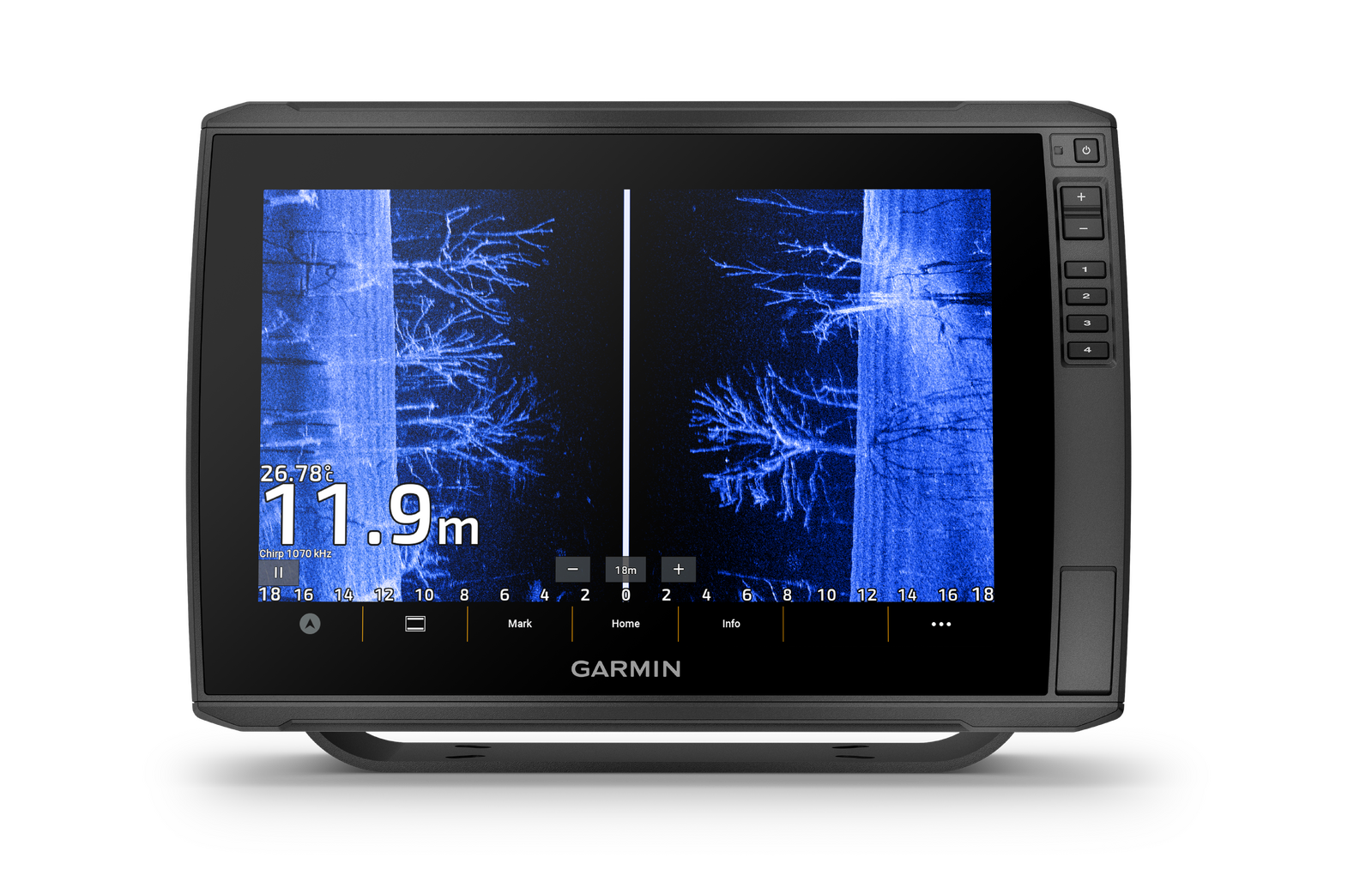

Garmin Garmin ECHOMAP™ Ultra 2 12" Chartplotters 125sv with GT56UHD-TM Transducer; Includes Garmin Navionics+ Australia & New Zealand Mapping

Product Code: GAR-010-02881-20

You're and angler who want premium fishfinding features in a fast supersharp chartplotter with big 12" IPS touchscreen display, keyed assist controls, maps, Livescope sonar compatibility and more. This is the one. With built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

$4,499.00 $3,999.00 In Stock Out of Stock

All prices include GST

Find your closest store to pick-up or deliver your order from
The estimated delivery is 3-5 business days

Shipping Calculator

Share:

Description Specifications Downloads

With big, crisp, sunlight-readable touchscreen displays, these versatile Chartplotters put a world of fishfinding capability at your fingertips.

With built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Features

  • 12” Touchscreen

  • Supports Livescope Sonar and more

  • Built-in Garmin Navionics+ Mapping

  • Wirelessly - share sonar, waypoints and routes

  • Capture screen recordings to share fish catches

  • Multi-band GPS for improved position accuracy

  • Includes GT56UHD-TM Transducer;

  • Includes Garmin Navionics+ Australia & New Zealand Mapping





General

  • Dimension 34.1 x 22.9 x 9.8 cm (13.4″ x 9″ x 3.9″)

  • Weight 2.5 kg (5.5 lbs)

  • Water rating IPX7

  • Touchscreen Yes

  • Display Type WXGA, IPS

  • Display Size 26.1 x 16.3 cm; 30.7 cm diagonal (10.3″ x 6.4″; 12.1″ diagonal)

  • Display Resolution 1280 x 800 pixels

  • Mounting Options Bail or flush

  • Input Touchscreen with Keyed Assist

Maps & Memory

  • Accepts Data Cards 2 microSD Cards

  • Waypoints 5000

  • Track points 50,000

  • Tracks 50 saved tracks

  • Navigation Routes 100

  • Sensors

  • GPS Yes

  • GLONASS Yes

  • Galileo Yes

  • BeiDou Yes

  • Has built-in receiver Yes

  • Receiver 10 Hz

  • NMEA 2000 Compatible Yes

  • Supports WAAS Yes

  • Supports multi-band, multi-constellation GPS Yes

Built-in maps

  • Built-in Auto Guidance+ Yes

  • Garmin Navionics+ Inland & Coastal Yes (see Additional)

  • Tide tables Yes (see Additional)

Optional map support

  • BlueChart g3 Yes

  • BlueChart g3 Vision Yes

  • Garmin Navionics+™ Yes

  • Garmin Navionics Vision+™ Yes

  • TOPO 100K Yes

  • Standard Mapping Yes

  • Garmin Quickdraw Contours Yes

Chartplotter Features

  • AIS Yes

  • DSC Yes

  • Supports Fusion-Link™ compatible radios Yes

  • ActiveCaptain Mobile Planning Compatible Yes

  • Sailing Features Yes

Electrical features

  • POWER INPUT 9 to 18 Vdc

  • Typical current draw at 12 Vdc 2.5 A

  • Maximum current draw at 12 Vdc 5 A

  • Maximum power usage at 10 Vdc 36 W

Sonar Features

  • Displays sonar Yes

  • Power output 600 W

  • Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

  • ClearVü Built-in 260/455/800/1000/1200 kHz

  • SideVü Built-in 260/455/800/1000/1200 kHz

  • Panoptix™ sonar Yes

  • LiveScope Yes

Connections

  • NMEA 2000® ports 1

  • Garmin Marine Network Ports 2 (large connector)

  • 12-pin transducer ports 12-pin scanning sonar

  • ANT® (Connectivity) Yes

  • Garmin Wi-Fi network (local connection) Yes

  • Weight: 1.0000
  • Height: 0
  • Width: 0
