Product Code: GAR-010-01966-00

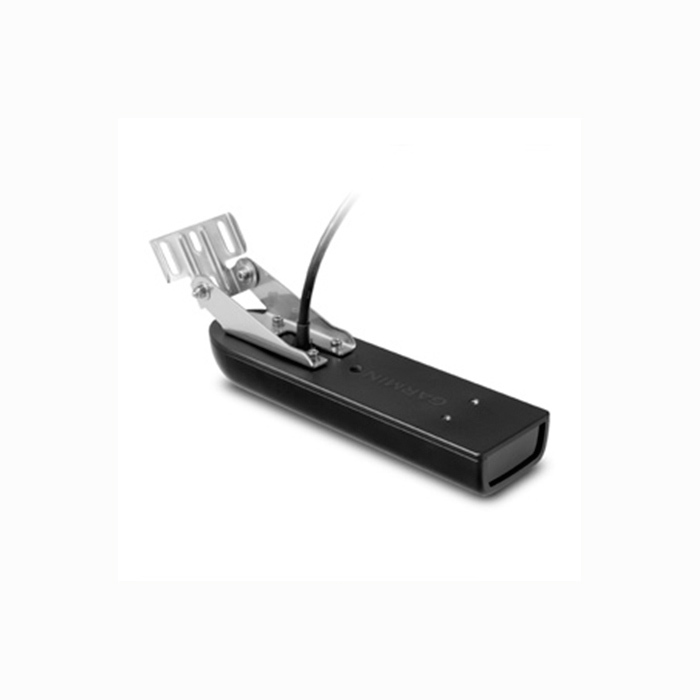

This transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP and CHIRP DownVu/SideVu transducer is optimized for depth performance and rough conditions. The CHIRP DownVu
All prices include GST
Shipping Calculator Postcode
Share:
This transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat.
This traditional CHIRP and CHIRP DownVu/SideVu transducer is optimized for depth performance and rough conditions.
The CHIRP DownVu/SideVu elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz.
The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz.
It also includes a built-in fast response temperature sensor.
GT51M-TM includes a 12-pin transducer with mounting hardware and installation instructions.
Compatible with CHIRP echoMAP dv and sv series Garmin fishfinders.
General
Transducer frequency CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Transducer power CHIRP Traditional 600 W; ClearVü/SideVü 500 W
Transducer beamwidth Traditional: 24°-13° ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Transducer maximum depth Traditional: 1,800 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
Transducer cable length 30 ft.
Transducer depth/speed/temperature Depth and temperature
Transducer number of pins 12-pin
Transducer supported deadrise/transom angles 0°-70° degree transom
Transducer Support
