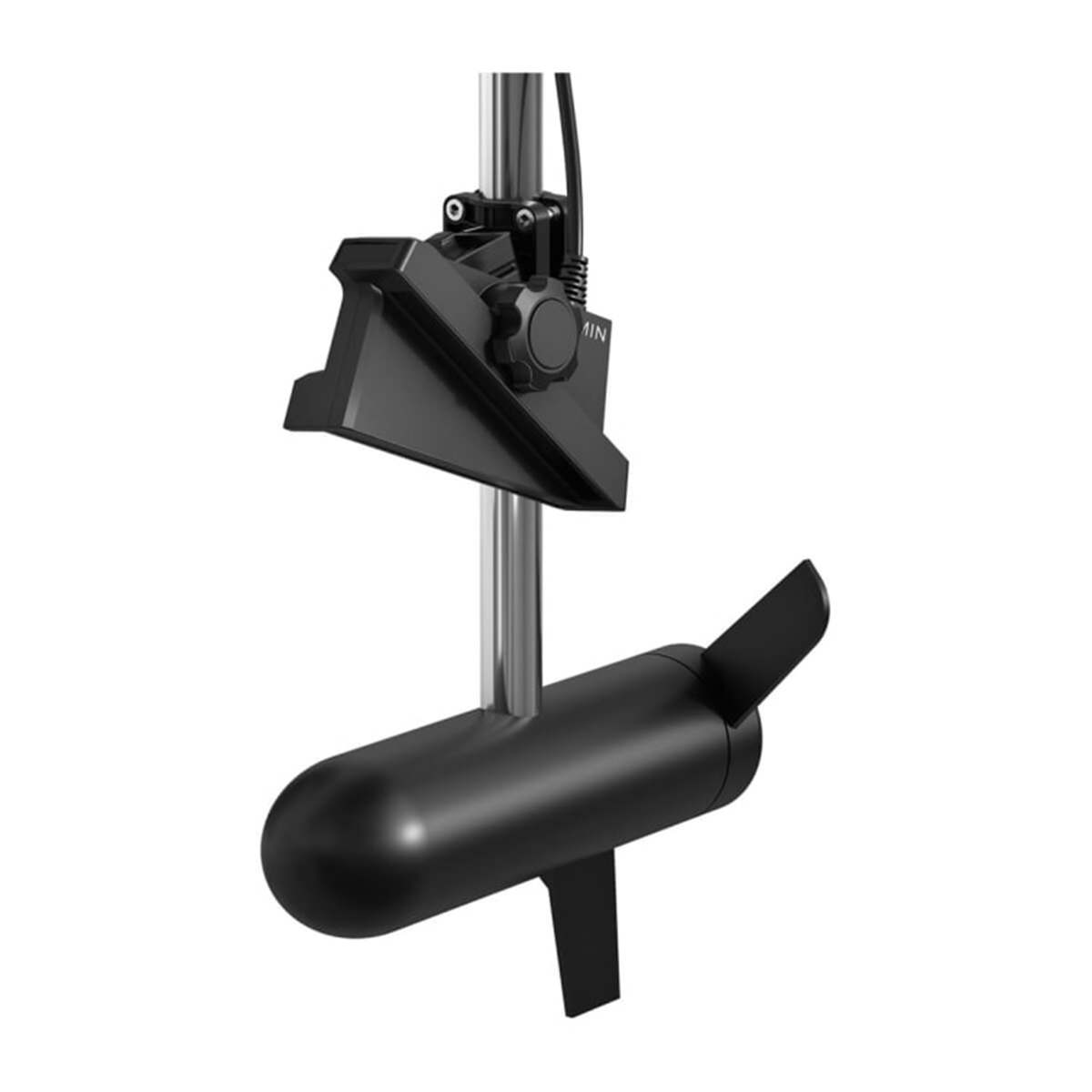

Garmin Garmin LiveScope XR System, with GLS 10 & LVS62 Transducer

Product Code: GAR-010-02719-00

You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

$5,399.00 $2,699.00 In Stock Out of Stock

All prices include GST

Find your closest store to pick-up or deliver your order from
The estimated delivery is 3-5 business days

Shipping Calculator

Share:

Description Specifications Downloads

THE LONG VIEW

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.

A CLOSE VIEW

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

IMAGE STABILIZATION

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES

Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.

FORWARD MODE

Now scout even farther ahead of your boat to see what’s happening in real time.

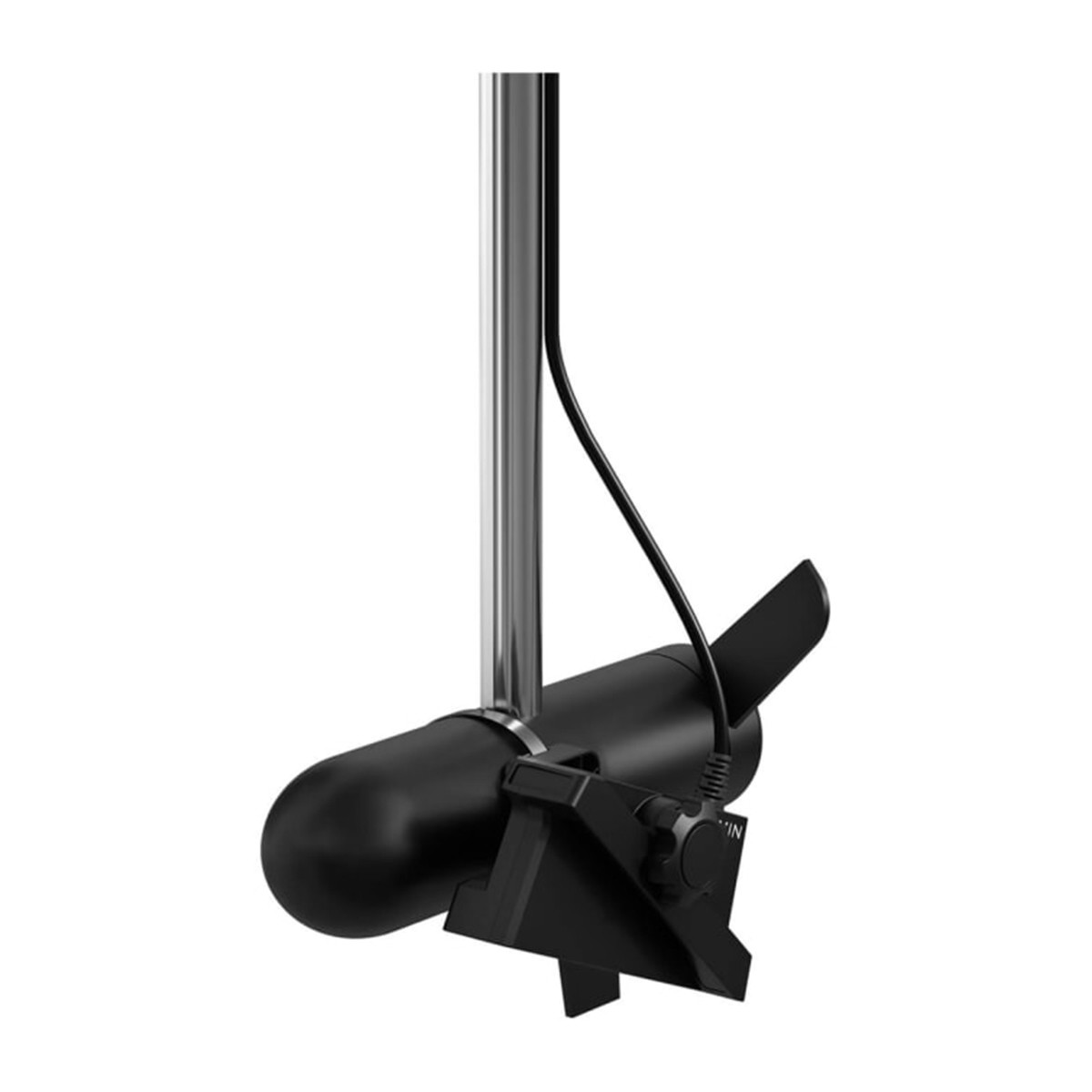

DOWN MODE

Explore live views of the activity deeper beneath your boat.

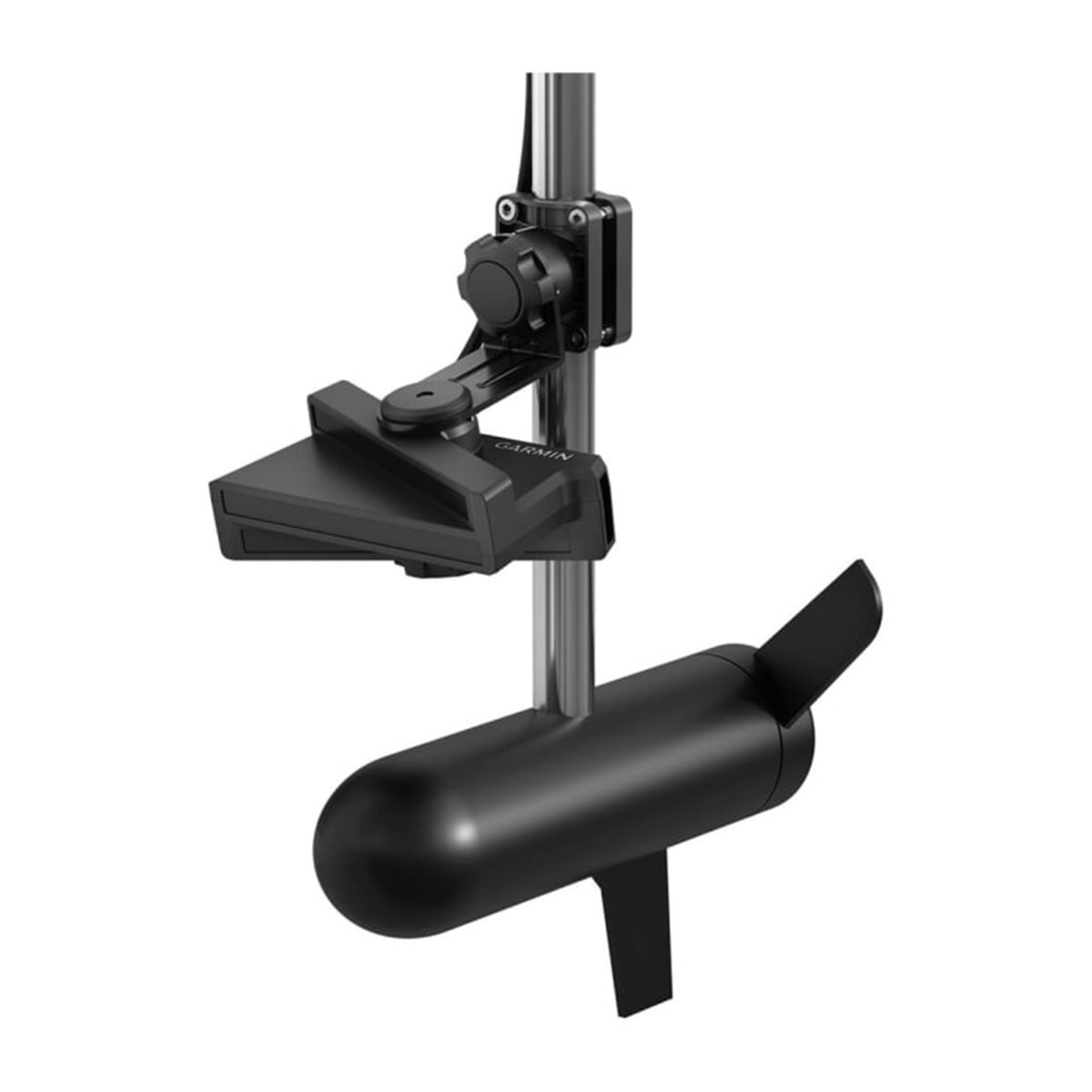

PERSPECTIVE MODE

See under the water with a view from your perspective above the water.

General

  • Transducer beamwidth 20° x 135°

  • Transducer cable length 20 ft

  • Transducer number of pins 21

  • Dimension GLS 10 sonar black box: 9.7″ x 5.9″ x 2.6″ (24.5 x 14.9 x 6.5 cm);

  • LVS62 transducer: 8.20″ x 3.98″ x 2.76″ (20.8 x 10.1 x 7.0 cm)

  • Weight GLS 10 sonar black box: 4.3 lbs (2.0 kg)

  • LVS62 transducer with cable: 3.92 lbs (1.78 kg)

  • LVS62 transducer without cable: 2.66 lbs (1.21 kg)

  • Water rating IPX7

  • Temperature range LVS62 Transducer: Operating: 0 C to 40 C

Electrical features

  • Power Input 10-32 V

  • Power usage 21 W typical, 58 W max

  • Fuse 7.5 A

  • Compass safe distance 7″ (0.18 m)

Sonar Features

  • Frequency 282 - 522 kHz

  • Transmit power 500 W

  • Maximum depth Freshwater: Down and Forward: 500’ (152.0 m)

  • Saltwater: Down and Forward: 350’ (106.0 m)

  • Sonar Type Live

  • Target Separation @100' 22″

  • Perspective Mode Mount Included Yes

Connections

  • Garmin Marine Network Ports 1 (small connector)

  • Weight: 1.0000
  • Height: 0
  • Width: 0
