Product Code: GAR-010-02706-00

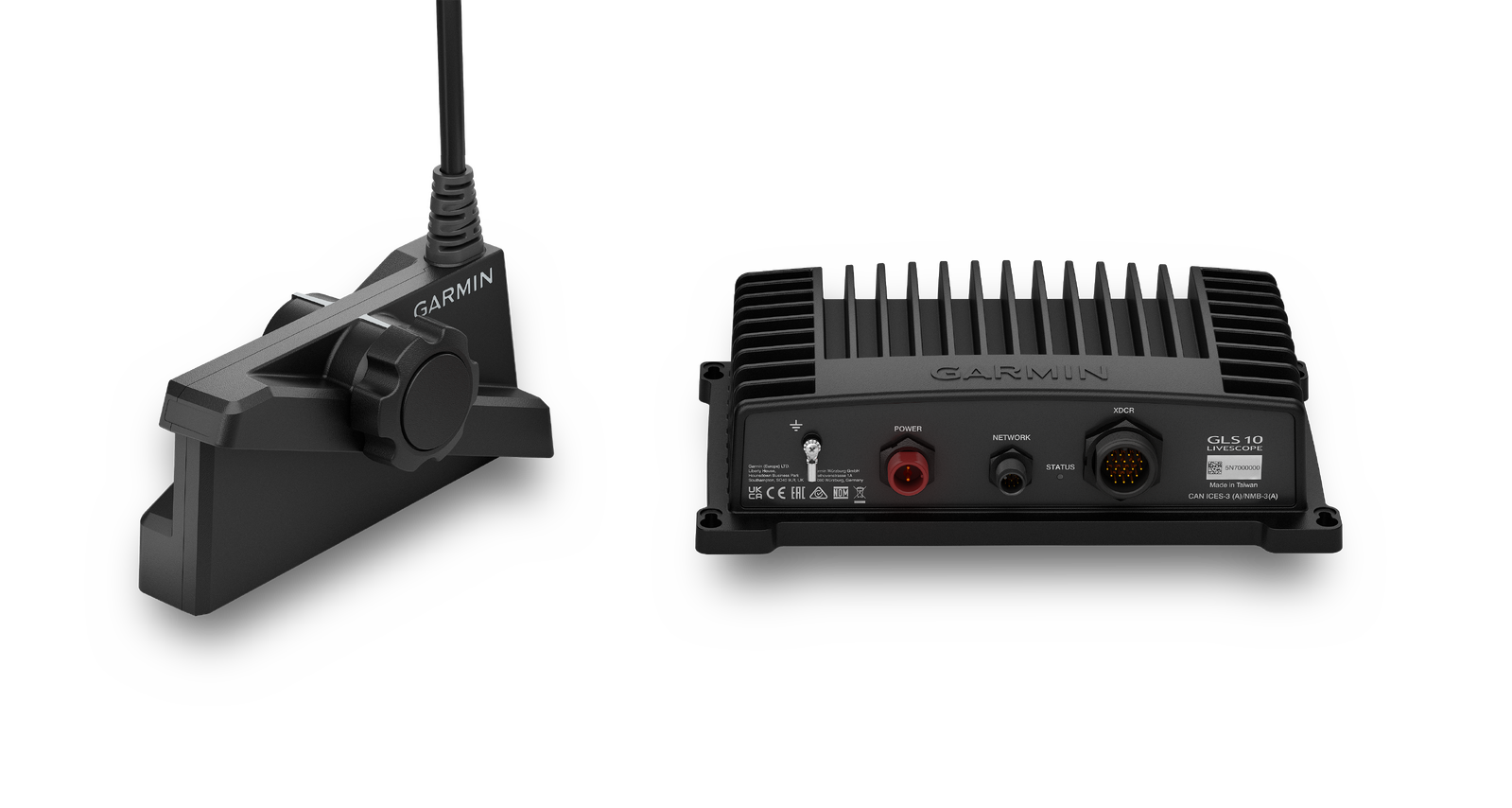

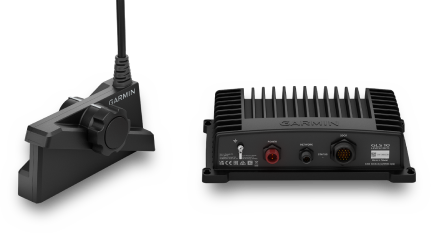

Garmin's next generation LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation
All prices include GST
Shipping Calculator Postcode
Share:
Garmin’s next generation LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation. Real-time sonar ensures that your live images are as accurate as possible. See exactly what you need with reduced noise and fewer sonar objects that impede your picture of fish and structure.
A built-in stabilization system keeps the sonar image on your compatible chart-plotter steady, even in rough conditions. Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity. Scout ahead of your boat to see what’s happening in real time. Explore live views of the activity directly beneath your boat. See under the water with a view from your perspective above the water.
See images clearly with improved screen clarity, transducer sensitivity and target separation. Scan surroundings with sharper images, reduced noise and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLS 10 sonar module) with just a new transducer. Get maximum contrast and clarity in your images with vivid colour palettes. Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
General
Transducer beamwidth 20° x 135°
Transducer cable length 20 ft
Transducer number of pins 21
Dimension GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm;
LVS34-IF transducer: 13.7 x 9.7 x 4.6 cm
Weight GLS 10 sonar black box: 2.0 kg;
LVS34-IF transducer: 0.9 kg
Water rating IPX7
Temperature range GLS 10 Black Box: Operating: -15 °C to 70 °C
Panoptix LiveScope LVS34-IF Transducer: Operating: 0 °C to 40 °C
Electrical features
Power Input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A
Compass safe distance 4″ (0.1 m)
Sonar Features
Frequency 530 - 1,100 kHz
Transmit power 500 W
Maximum depth Down and Forward: 61.0 m
Sonar Type Live
Target Separation @100' 14"
Perspective Mode Mount Included Yes
Connections
Garmin Marine Network Ports 1 (small connector)
