Garmin GSTRIKER Vivid 7sv With GT52HW-TM Transducer

Product Code: GAR-010-02553-01

7" GPS Fishfinder with Industry-leading Sonar and Quickdraw Contours Mapping Software. The STRIKER Vivid 7sv fishfinder with a bright 7 inch display and built-in GPS features Quickdraw Contours map drawing software.

$879.00 $739.00 In Stock Out of Stock

All prices include GST

Find your closest store to pick-up or deliver your order from
The estimated delivery is 3-5 business days

Shipping Calculator

Share:

Description Specifications Downloads

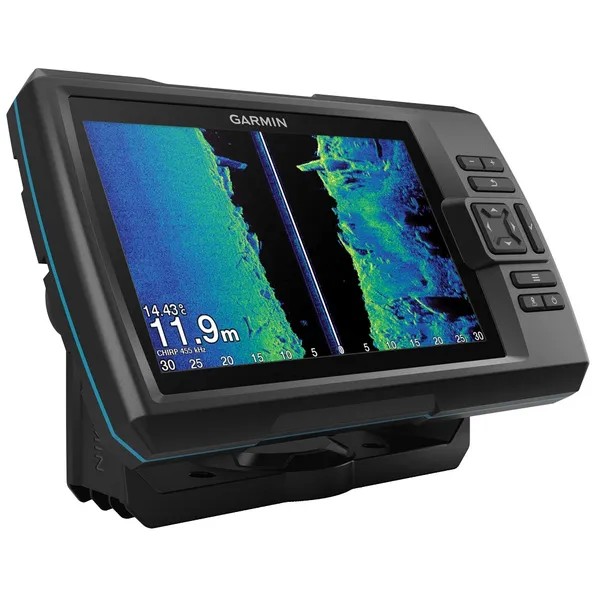

The Garmin Striker Vivid 7sv is one step up again from the Vivid 7cv.

With all the same fishfinder and GPS specifications and using the same high quality 7 inch colour screen, the 75sv also incorporates Side Vu all in the one transducer to let you see what is on the left and right of your boat. So what is the benefits of sideVu?

Garmin ClearVu scanning sonar gives you a nearly photographic image of what passes 300m below your boat. Garmin SideVu scanning sonar gives you a crisp, clear view of what lies up to 200m off to each side of your boat.

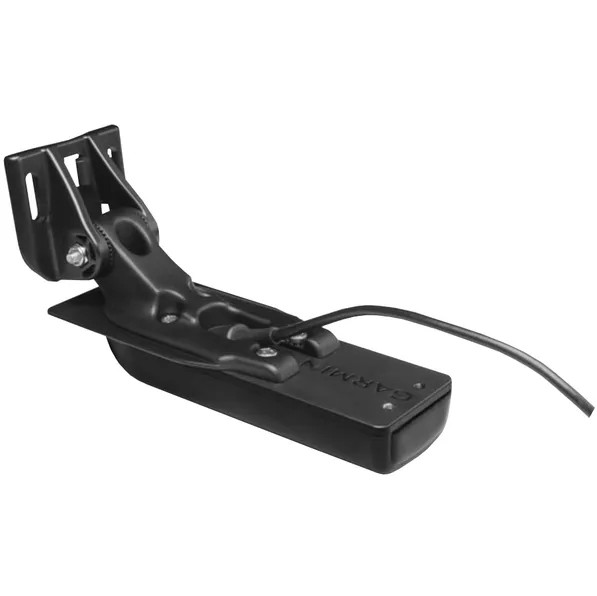

You clearly see structure, submerged objects and fish. The 7sv is supplied with the GT52HW-TM transom mount transducer which includes High wide CHIRP sonar and both ClearVu and SideVu scanning sonars all in the one compact unit.

General

  • Dimension 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)

  • Weight 1.7 lbs (0.8 kg)

  • Water Rating IPX7

  • Display Type WVGA colour

  • Display Size 3.4" x 6.1" (8.6 x 15.4 cm); 7.0" diag (17.8 cm)

  • Display Resolution 800 x 480 pixels

  • Mounting Options flush, tilt/swivel

  • Input Keyed

Maps & Memory

  • Waypoints/favorites/locations 5000

  • Track points 50,000

  • Tracks 50

  • Navigation Routes 100

Sensors

  • GPS Yes

  • Has built-in receiver Yes

  • Supports WAAS Yes

Optional map support

  • Garmin Quickdraw Contours Yes

Electrical features

  • POWER INPUT 12 to 20 Vdc

  • Typical current draw 0.67 A

  • Max current draw 1.5 A

  • Power Consumption 8.0

Sonar Features

  • Displays sonar Yes

  • Traditional sonar (dual frequency/beam) Built-in

  • ClearVü Yes

  • SideVü Yes

  • Frequency Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz

  • Transmit power 500 W (RMS)

  • Bottom Lock (shows return from the bottom up) Yes

  • Water Temperature Log Yes

Connections

  • 4-pin transducer ports 2

  • Garmin Wi-Fi network (local connection) Yes

Fishfinder Features

  • Split-screen zoom Yes

  • Fish Symbol ID (helps identify fish targets) Yes

  • Autogain technology (minimizes clutter; maximizes targets) Yes

  • Adjustable depth line (measures depth of underwater objects) Yes

  • A-scope (real time display of fish passing through transducer beam) Yes

  • Water temperature sensor included Yes

  • Depth range shading Yes

Additional

  • One 4-pin transducer port

  • Wireless Connectivity: Yes

  • Quickdraw Contours

  • Integrated GPS

  • Mark Waypoints

  • Course over Ground (COG)

  • Current draw @ 12V: 0.55A

  • Weight: 1.0000
  • Height: 0
  • Width: 0
