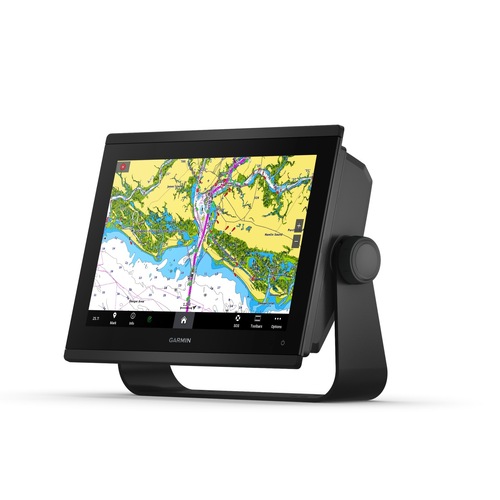

Garmin GPSMAP® 1253xsv SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

Product Code: GAR-010-02367-62

With its sleek design, powerful processing and upgraded IPS display, this advanced 12″ chartplotter integrates seamlessly into your Garmin marine system.

$4,999.01 In Stock Out of Stock

All prices include GST

Find your closest store to pick-up or deliver your order from
The estimated delivery is 7-9 business days

Shipping Calculator

Share:

Description Specifications Downloads

Features

  • Easily integrate with more engines.

  • Connect to compatible third-party devices with OneHelm™ digital switching.

  • Easily build your marine system using the best of network connectivity.

  • Navigate any waters with preloaded Garmin Navionics+™ charts and mapping.

  • See below your boat with built-in sonar capabilities.

  • Manage your marine experience from nearly anywhere.

General

  • Dimension 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)

  • Weight 6.6 lbs. (3.0 kg)

  • Water rating IPX7

  • Touchscreen Yes

  • Display Type WXGA

  • Display Size 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)

  • Display Resolution 1280 x 800 pixels

  • Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)

  • Input Touchscreen

Maps & Memory

  • Accepts Data Cards 2 microSD™ cards (back of unit)

  • Waypoints 5,000

  • Track points 50,000

  • Tracks 50 saved tracks

  • Navigation Routes 100

Sensors

  • GPS Yes

  • GLONASS Yes

  • Galileo Yes

  • Has built-in receiver Yes

  • Receiver 10 Hz

  • NMEA 2000 Compatible Yes

  • NMEA 0183 Compatible Yes

  • Supports WAAS Yes

Built-in maps

  • Built-in Auto Guidance+ Yes

  • Garmin Navionics+ Inland & Coastal Yes

  • Tide tables Yes

Optional map support

  • Garmin Navionics+™ Yes

  • Garmin Navionics Vision+™ Yes

  • Standard Mapping Yes

  • Garmin Quickdraw Contours Yes

Chartplotter Features

  • Smart Mode Compatible Yes

  • AIS Yes

  • DSC Yes

  • Supports Fusion-Link™ compatible radios Yes

  • GSD Black Box Sonar Support Yes

  • GCV Black Box Sonar Support Yes

  • ActiveCaptain Mobile Planning Compatible Yes

  • GRID (Garmin Remote Input Device) compatible Yes

  • Wireless Remote Compatible

  • Sailing Features

  • Spoken audio alerts

  • OneHelm support

Electrical features

  • POWER INPUT 10 to 32 Vdc

  • Typical current draw at 12 Vdc 1.68 A

  • Maximum current draw at 12 Vdc 3.56 A

  • Maximum power usage at 10 Vdc 43.0W

Sonar Features

  • Displays sonar Yes

  • Power output 1 kW

  • Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

  • ClearVü Built-in 260/455/800/1000/1200 kHz

  • SideVü Built-in 260/455/800/1000/1200 kHz

  • Panoptix™ sonar Yes

  • LiveScope Yes

Connections

  • NMEA 2000® ports 1

  • NMEA 0183 Input (Rx) Ports 1

  • NMEA 0183 output (Tx) ports 1

  • Video input ports 1 (BNC composite)

  • Video output ports 1 HDMI

  • J1939 ports 1

  • Garmin Marine Network Ports 2

  • 12-pin transducer ports 1

  • USB ports Yes

  • BNC external GPS antenna port Yes

  • Bluetooth® pairing Yes

  • ANT® (Connectivity) Yes

  • Garmin Wi-Fi network (local connection) Yes

  • Weight: 3.0000
  • Height: 30.8000
  • Width: 22.8000
  • Depth: 8.2000
