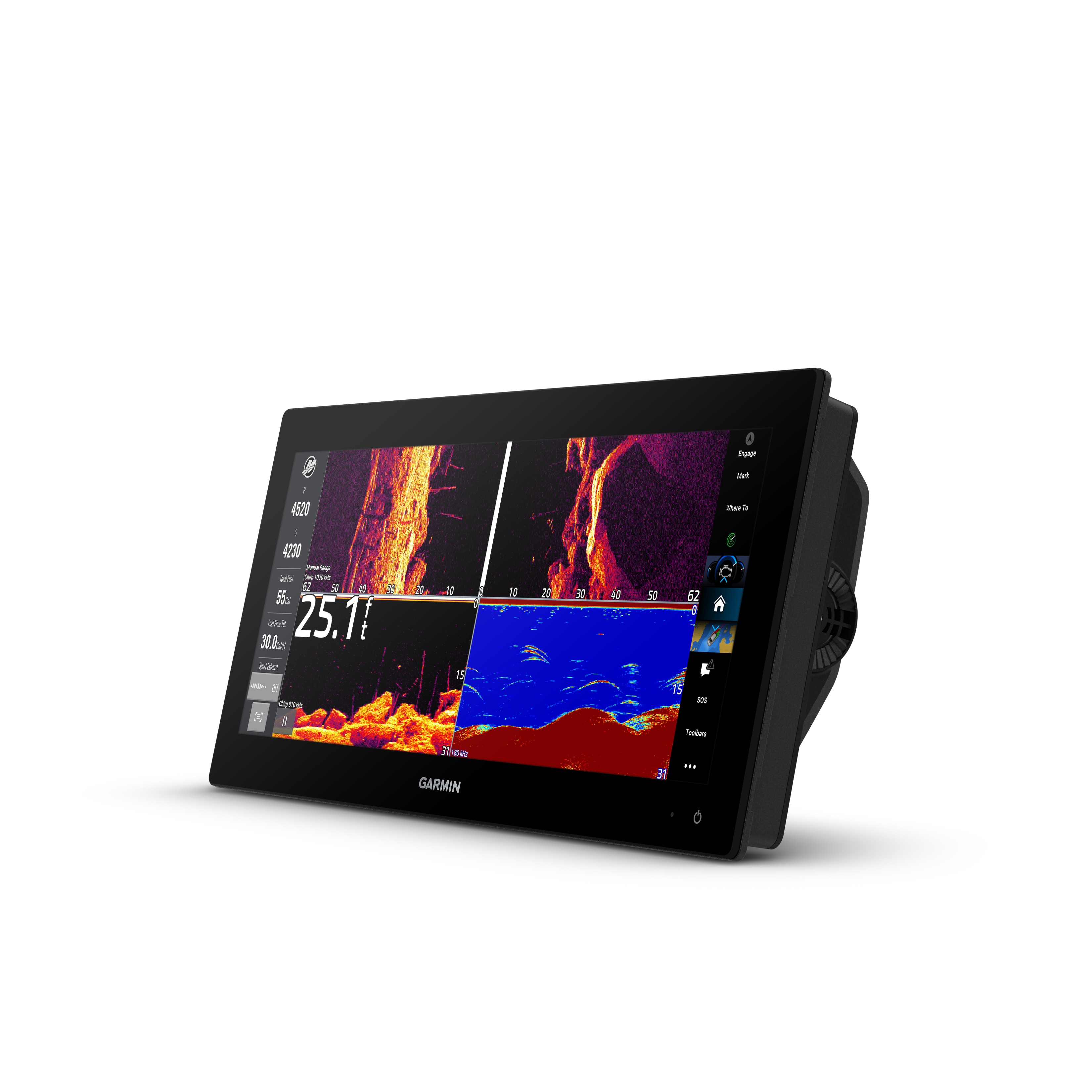

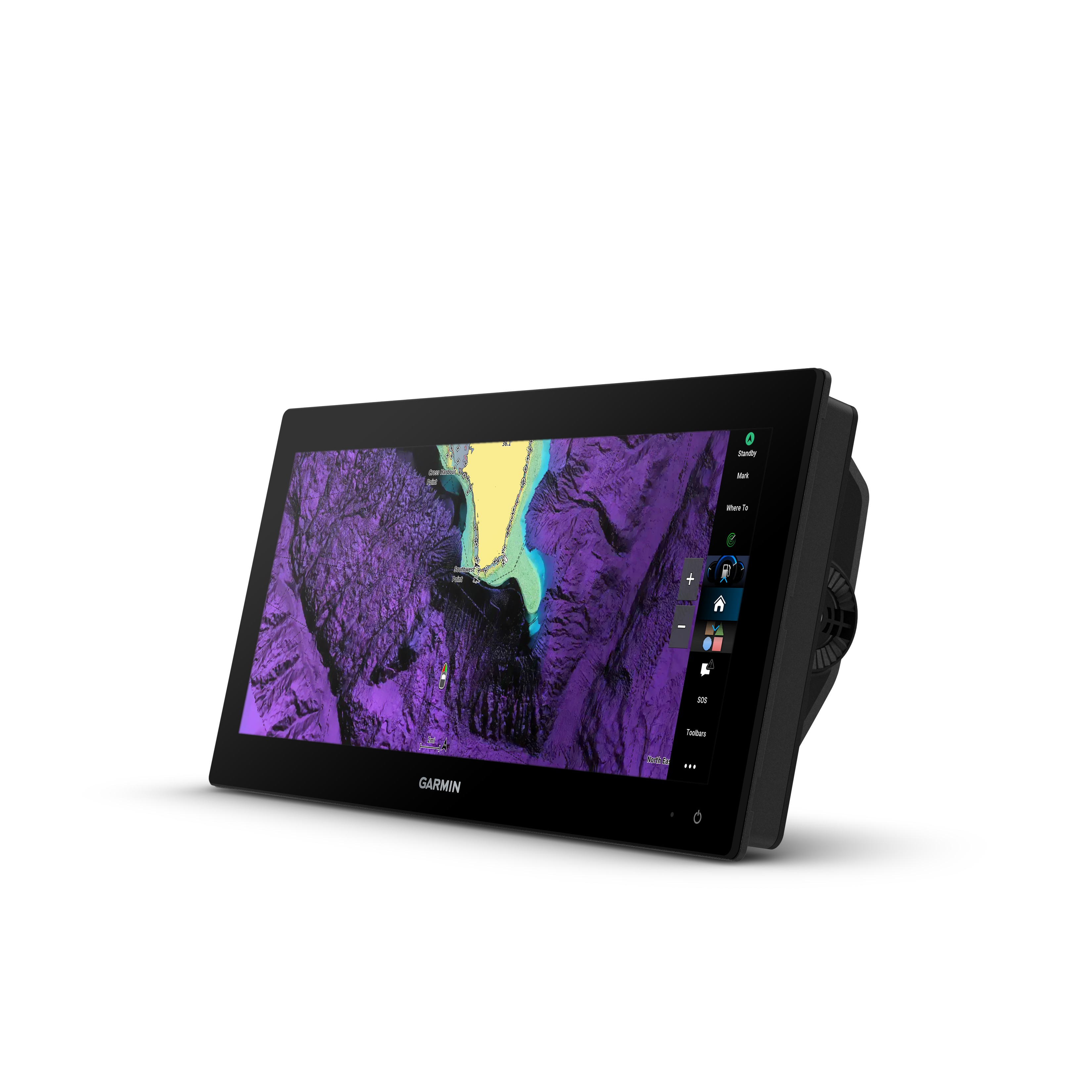

Garmin GPSMAP 1553xsv Ultrawide SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

Product Code: GAR-010-03855-02

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

$7,599.00 In Stock Out of Stock

All prices include GST

Find your closest store to pick-up or deliver your order from
The estimated delivery is 7-9 business days

Shipping Calculator

Share:

Description Specifications Downloads

Premium Marine Chartplotter with Integrated Sonar and Rugged Display

Designed for serious navigators and anglers, the Garmin GPSMAP 1553xsv features a 15″ ultrawide IPS touchscreen and preloaded marine and inland charts. It combines high-resolution sonar—including SideVü, ClearVü, and CHIRP—with advanced network connectivity, radar support, and smart sailing tools. Built for durability, this chartplotter offers seamless integration into any marine electronics suite, delivering reliable performance and intuitive control on every voyage.

Key Features

  • Ultrawide IPS touchscreen: Provides bright, sunlight-readable visuals across a spacious 15″ display.

  • Preloaded charts: Includes built-in coastal and inland mapping with Auto Guidance+ for route planning.

  • Built-in sonar technology: Supports SideVü, ClearVü, and traditional CHIRP sonar for high-clarity underwater scanning.

  • Panoptix compatibility: Works with LiveScope sonar for real-time underwater imaging and live sonar views.

  • Advanced connectivity: Supports NMEA 2000, NMEA 0183, Garmin Marine Network, radar, and engine data integration.

  • Marine-grade durability: Engineered for harsh marine environments with robust waterproof housing and versatile mounting.

  • Sailing tools included: Offers laylines, polar data, wind rose, and race assistance features for sailing applications.

  • Wireless control: Features built-in Wi-Fi, Bluetooth, and ANT+ for device pairing and remote system management.

Bring exceptional clarity, performance, and control to your marine navigation with this fully integrated chartplotter system.

General

  • Dimension 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm)

  • Weight 7.2 lbs (3.26 kg)

  • Water Rating IPX7

  • Touchscreen Yes

  • Display Type Ultrawide display, IPS

  • Display Size 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal)

  • Display Resolution 1920 x 720 pixels

  • Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)

  • Polarised lens viewability Yes

Maps & Memory

  • Accepts Data Cards 2 microSD™ cards (back of device)

  • Compatible with Garmin SD card reader Yes (USB card reader)

  • Waypoints 5000

  • Track points 50,000

  • Tracks 50 saved tracks

  • Navigation Routes 100

Sensors

  • GPS Yes

  • GLONASS Yes

  • Galileo Yes

  • Has built-in receiver Yes

  • Receiver 10 Hz

  • NMEA 2000 Compatible Yes

  • NMEA 0183 Compatible Yes

  • Supports WAAS Yes

  • Supports multi-band, multi-constellation GPS Yes (with external GPS antenna)

Built-in maps

  • Built-in Auto Guidance+ Yes

  • Garmin Navionics+ Inland & Coastal Yes

  • Tide tables Yes

Optional map support

  • BlueChart g3 Yes

  • BlueChart g3 Vision Yes

  • LakeVü g3 Yes

  • LakeVü g3 Ultra Yes

  • Garmin Navionics+™ Yes

  • Garmin Navionics Vision+™ Yes

  • TOPO 100K Yes

  • Standard Mapping Yes

  • Garmin Quickdraw Contours Yes

  • Raster chart support Yes

Chartplotter Features

  • Smart Mode Compatible Yes

  • AIS Yes

  • DSC Yes

  • Supports Fusion-Link™ compatible radios Yes

  • GSD Black Box Sonar Support Yes

  • GCV Black Box Sonar Support Yes

  • ActiveCaptain Mobile Planning Compatible Yes

  • Supports voice commands Yes (with external accessory)

  • GRID (Garmin Remote Input Device) compatible Yes

  • Wireless Remote Compatible Yes

  • Sailing Features Yes

  • Spoken audio alerts Yes

  • OneHelm support Yes

Electrical features

  • POWER INPUT 10 to 32 Vdc

  • Typical current draw at 12 Vdc 2.44 A

  • Maximum current draw at 12 Vdc 4.21 A

  • Maximum power usage at 10 Vdc 56.93 W

  • Sonar Features

  • Displays sonar Yes

  • Power output 1 kW

  • Traditional sonar (dual frequency/beam)Yes

  • ClearVü Yes

  • SideVü Yes

  • Panoptix™ sonar Yes

  • LiveScope Yes

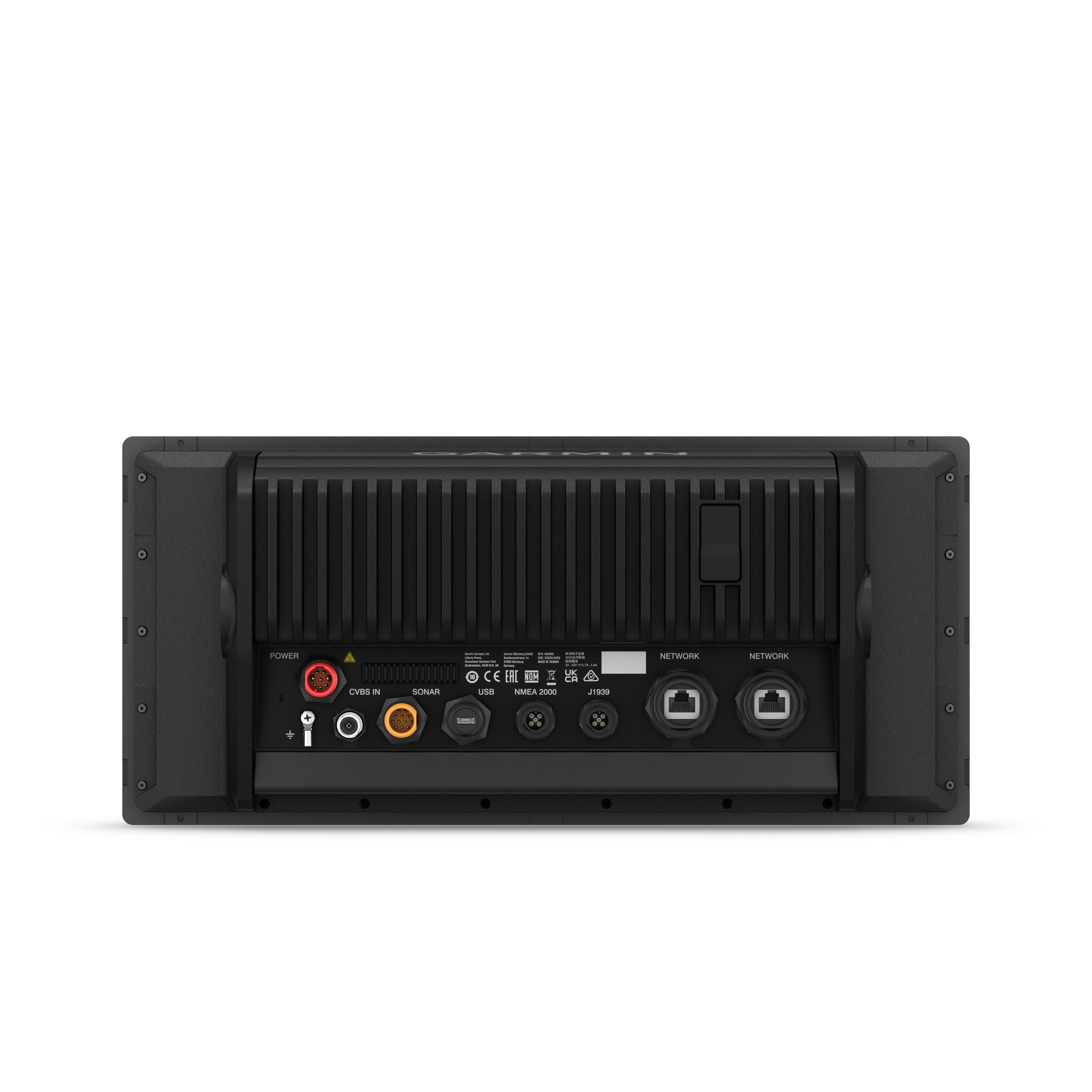

Connections

  • NMEA 2000® ports1NMEA 0183 Input (Rx) Ports 1

  • NMEA 0183 output (Tx) ports1Video input ports 1 (BNC composite)

  • J1939 ports1Garmin Marine Network Ports 2

  • 12-pin transducer ports 1

  • USB ports Yes

  • Bluetooth® pairing Yes (BLE)

  • ANT® (Connectivity) Yes

  • Garmin Wi-Fi network (local connection) Yes

  • Weight: 1.0000
  • Height: 0
  • Width: 0
