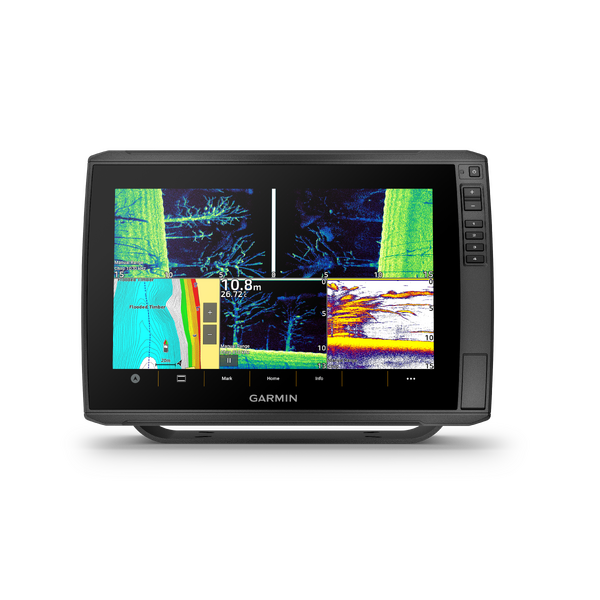

Garmin ECHOMAP Ultra 2 10" Chartplotter 105sv with GT56UHD-TM Transducer
GAR-010-02879-20
RRP Price: $3,999.00
With big, crisp, sunlight-readable touchscreen displays, these versatile Chartplotters put a world of fishfinding capability at your fingertips.
With built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
Features
- 10″ Touchscreen
- Supports Livescope Sonar and more
- Built-in Garmin Navionics+ Mapping
- Wirelessly - share sonar, waypoints and routes2
- Capture screen recordings to share fish catches
- Multi-band GPS for improved position accuracy
- Includes GT56UHD-TM Transducer;
- Includes Garmin Navionics+™ Australia & New Zealand Mapping
General
- Dimension: 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
- Weight: 1.8 kg (4 lbs)
- Waterproof: IPX7
- Touchscreen: Yes
- Display Type: WXGA, IPS
- Display Size: 21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal)
- Display Resolution: 1280 x 800 pixels
- Mounting Options: Bail or flush
- Input: Touchscreen with Keyed Assist
Maps & Memory
- Accepts Data Cards: 2 microSD Cards
- Waypoints: 5000
- Track points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Sensors
- GPS: Yes
- GLONASS: Yes
- Galileo: Yes
- BeiDou: Yes
- Has built-in receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
- Supports multi-band, multi-constellation GPS: Yes
Built-in maps
- Includes Garmin Navionics+™ Australia & New Zealand Mapping
- Built-in Auto Guidance+ Yes
- Garmin Navionics+ Inland & Coastal: Yes (see Additional)
- Tide tables: Yes (see Additional)
Optional map support
- BlueChart g3 Yes
- BlueChart g3 Vision Yes
- Garmin Navionics+™ Yes
- Garmin Navionics Vision+™ Yes
- TOPO 100K Yes
- Standard Mapping Yes
- Garmin Quickdraw Contours Yes
Chartplotter Features
- AIS: Yes
- DSC: Yes
- Supports Fusion-Link™ compatible radios: Yes
- ActiveCaptain Mobile Planning Compatible: Yes
- Sailing Features: Yes
Electrical features
- Power Input: 9 to 18 Vdc
- Typical current draw at 12 Vdc: 2.3 A
- Maximum current draw at 12 Vdc: 5 A
- Maximum power usage at 10 Vdc: 34 W
Sonar Features
- Displays sonar: Yes
- Power output 600 W
- Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in 260/455/800/1000/1200 kHz
- SideVü: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ sonar: Yes
- LiveScope: Yes
Connections
- NMEA 2000® ports: 1
- Garmin Marine Network Ports: 2 (large connector)
- 12-pin transducer ports: 12-pin scanning sonar
- ANT+ (Connectivity) Yes
- Garmin Wi-Fi network (local connection) Yes
In The Box - With transducer
- ECHOMAP Ultra 105sv
- GT56UHD-TM transducer
- Charging/data cable
- Bail Mount With Quick Release Cradle
- Protective sun cover
- Hardware
- Documentation
SKU | GAR-010-02879-20 |
Brand | Garmin |
