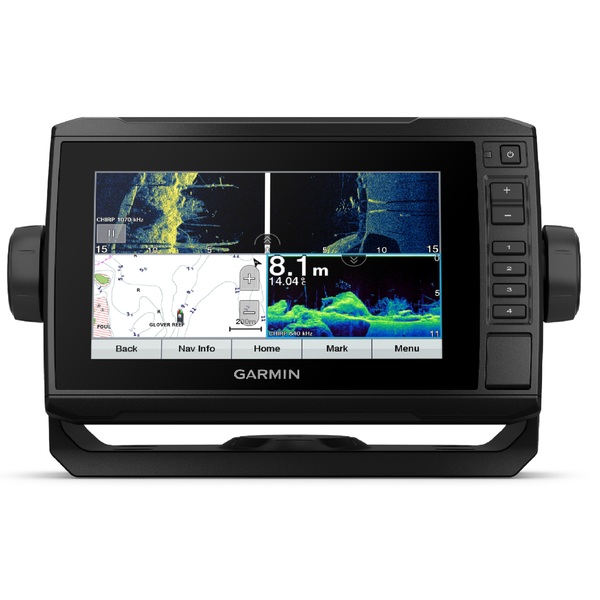

Garmin echoMAP UHD 75sv 7" Fishfinder With GT56UHD DownVu/SideVu
GAR-010-02521-20
RRP Price: $1,699.01
The echoMAP UHD 75sv chartplotter with 7" screen is preloaded with highly detailed Australia and New Zealand BlueChart g3with Navionics data and include Quickdraw Contours map drawing software.
The echoMAP UHD 75sv combo combo features a 7" keyed-assist touchscreen display and is supplied with a high performance GT56UHD transom mount transducer for high-wide CHIRP, Ultra High-Definition ClearVü and SideVü scanning sonar. Dual-frequency (50/200kHz), Dual beam (77/200 kHz), transmit power of 500 W (RMS) / 4,000 W (peak to peak).
The UHD 75sv has built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart to purchase and download new charts, smart notifications, software updates, Garmin QuickDraw Community data and more. Includes built in waterproof data slot for single microSD card to a maximum of 32GB.
The echoMAP UHD 75sv is compatible with Garmin Force trolling motor for full control of the motor from the chartplotter screen, including the ability to route to waypoints, follow tracks and more!
The UHD 75sv supports the Panoptix LiveScope System and NMEA 2000 and NMEA 0183 network. Is supplied with a quick-release bail mount for easy removal support.
SKU | GAR-010-02521-20 |
Brand | Garmin |
